Description

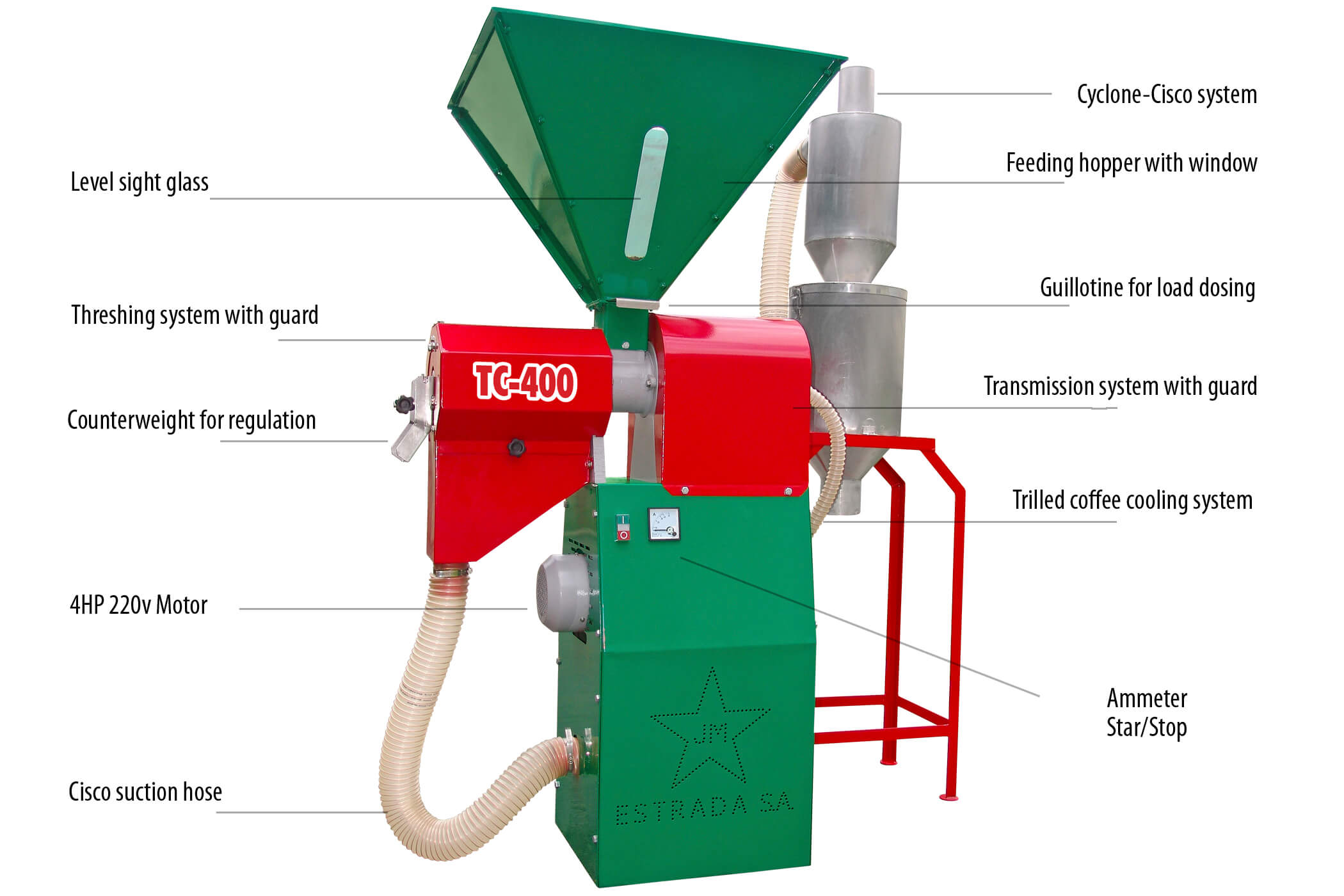

The TC-400 thresher is designed to enhance your productivity, impacting the performance in coffee threshing production. The thresher is manufactured with its main components in cast iron, has a stainless steel threshing basket, a central rotor made of AISI 4140 tempered steel for high strength, a loading hopper made of carbon steel with a peephole for load control, and a guillotine gate that doses the coffee load to the equipment. It is finished with weather-resistant electrostatic paint.
It features a cyclone for collecting husk resulting from threshing, along with a two-fan system. One fan facilitates husk suction and its subsequent discharge to the cyclone, and a second fan injects air at high speed into the threshing basket to aid husk expulsion and also cools the beans, preventing overheating during the threshing process.
Production capacity (parchment)
Loading capacity (naturals)
Three-phase motor
Analog ammeter
882 lbs/hour
265 lbs/hour
5 HP / 220V-60HZ
0 -50 Amp
Loading hopper capacity
77 lbs
Production capacity (parchment)
882 lbs/hour
Loading capacity (naturals)
265 lbs/hour
Three-phase motor
5 HP / 220V-60HZ
Analog ammeter
0 -50 Amp
Resistant
Efficient
Secure
Long service life
